LATECOERE 290




Technical Specifications
Type
Seaplane torpedo monoplane with high wing
Date first flight
October 3, 1931
Wingspan
19,25 m
Lenght
14,65 m
Height
6,06 m
Wing Area
58,20 m2
Empty Weight
2871 Kg
Max. Takeoff Weight
4799 Kg
Cruising Speed
165 km/h.
Maximum Speed
210 km/h
Climbing Speed
1500m in 7,62mn
Service ceilling
4760m
Range
700 kms unladen
Crew
3 Men
Motorization
1 Hispano-Suiza 12Nbr engine with 12 Cylinders in V of 650ch
Armament
2 mobile 7.7mm Lewis machine guns at the rear back post
1 Vickers machine gun of 7.7mm on the hood
1 torpedo DA type of 700 kgs
or
2 150kg bombs




Production

35 Latécoère 290 and about derivatives have been built since the date of the first flight on October 3, 1931. They are divided into :

  • 32 Latécoère 290
  • 1 Latécoère 293
  • 1 Latécoère 294
  • 1 Latécoère 296

To date, out of the 35 aircrafts manufactured, 3 are listed in the list below :




Historical

At the end of the 1920s, to respond to a program launched by the Navy, the company Latécoère offers a torpedo seaplane derived from the civil aircraft Laté 28

The aircraft is of traditional construction. The wing whose structure is supported by two longitudinal members, is connected to the fuselage by two pairs of metal mats. The fuselage consists of a steel tube structure covered in its rear part and covered with metal in its front part. The unit is powered by a Hiscano-Suiza 12Nbr 650cv liquid cooled. The crew is three people. The pilot, located to the left of the aircraft, sits in front of an 800-liter gas tank. Then come the Radio-Navigator and the gunner who serves a 7.7mm double Lewis lane in the dorsal mobile turret.

The prototype, built in Toulouse, made its first flight, on wheels, October 3, 1931. After its first test flights, the aircraft joined Saint-Laurent-De-La-Salanque where he will receive floats. He will then test his seaplane this time in Saint-Raphael, from October 21 to December 9, 1931.

The tests were conclusive and the Navy ordered, in the spring of 1932, twenty Latécoère 290. In the meantime, another prototype was built, the 29.0-02, sent to Saint-Raphaël October 18, 1932 to undergo tests.

The first aircraft were completed at the end of 1932 and will be delivered to the new 4T1 squadron, based on Lake Berre. As for the prototype, the aircrafts are assembled on wheels in Toulouse and are transferred to Saint-Laurent-de-la-Salanque to receive floats. On October 5th, 1933, another order was placed for an additional 10 copies.

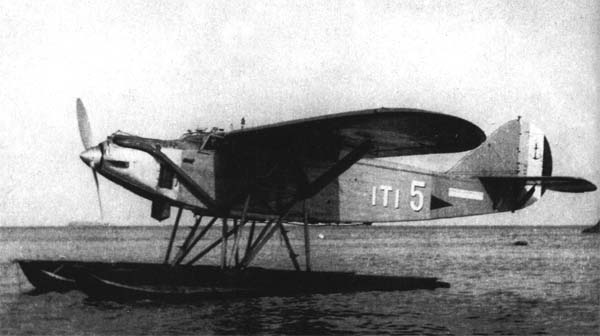

In 1935, 9 aircraft were delivered to 1T1 squadron. The flying schools based in Berre and Cherbourg will also each receive a Latécoère 290. In October 1938, squadrons 4T1 and 1T1 will be renamed respectively T1 and T2. These units will gradually receive more modern aircrafts, Latécoère 298, and old Latécoère 290 will be donated to schools or removed from service.

However, the squadron 1S2, created in Cherbourg in August 1939, will receive 4 Latécoère 290 and several Gourdou-Leseurre GL812 ... These aircrafts, obsolete, will nevertheless ensure missions over the Channel for nearly 9 months ... Then during the withdrawal of the unit on the Atlantic coast, these aircraft will perform dive bombing missions on enemy ships. After the Armistice, these aircraft will end up on Lake Hourtin, in the occupied zone.

It should be noted that it was on a Latécoère 290, in June 1934, that was tested the first Propeller Ratier electric pitch control.


Versions

Latécoère 290

Series motorized by a hispano-suiza 12Nbr of 650ch

Latécoère 293
First flight in 1932. 1 single model built. Version powered by a Gnome-Rhône 14Kbrs of 815hp
Latécoère 294
First flight late 1932. 1 single built. Version motorized by a Gnome-Rhône 14Kdrs 830ch. The rear fuselage and drift were modified to increase the firing range of the rear station. The leading edge of the wing was also modified in its close part of the pilot to improve the visibility.
Latécoère 296
Same version as the Laté 294, but powered by a hispano-suiza 12Ydrs 840ch




Bibliography

1 ) _ AIR MAGAZINE No35 : December 2006
- Le Latécoère 290 : "A militarized civilian"

From Gérard BOUSQUET
