Technical Specifications
Twin-engine Three-seater for training with low wing and retractable landing gear
Date first flight
16,00 m
12,00 m
Wing Area
33 m2
Empty Weight
Max. Takeoff Weight
Cruising Speed
250 km/h.
Maximum Speed
290 km/h à 2000m
Climbing Speed
Service ceilling
3 men
2 engines Potez 9E of 240 Hp each
No armament



26 Potez 568 were built since the date by the first flight, in 1937

To date, of the 26 aircrafts manufactured, 1 are listed in the list below :


In May 1937, the Ministry of Air issues a call for tenders to French manufacturers for the supply of a "T3" triplace aircraft, capable of carrying out observation, liaison or reconnaissance missions.

Four manufacturers respond favorably, including the company Potez, integrated in the SNCAC (National Company of Aeronautical Constructions of the North) since the nationalization. The manufacturer offers a version derived from its twin-engine civil transport, the Potez 560.

The unit is a twin-engine monoplane powered motorized by two radial engine Potez 9Ab, air-cooled of 185-hp. Made entirely of wood, it is equipped with a retractable landing gear. Compared to the civilian model, it has a dorsal turret that can receive a 7.5mm machine gun and a "tub" ventral for the observer. The new device wins the contract and under the designation Potez 566, is the subject of an order. However, of the 57 aircraft initially planned, only 3 will be made.

Naval aeronautics is also interested in the new model. Following the commercialization of the civil version Potez 561 for Air France for its African lines, the Navy orders Potez a aircraft for training and transport, and able to land on the aircraft carrier Béarn. Only one copy will be built under the designation Potez 56E. It is easily recognizable by the presence of a ventral landing stick. It is also equipped with partially folding wings. Nevertheless, the plane will be used primarily from land. The interest of the Navy for this type of aircraft does not stop there, since it orders 22 derived from the Potez 561, called Potez 567. This one received a more powerful motorization with Radial engine potez 9E of 240ch . The 22 copies will be used for target towing, transport ... At the declaration of war in September 1939, 20 copies were still present in units, 5 others will be lost before the Armistice.

The Air Force turned to Potez again to order a version derived from the Potez 560, this time mainly for training. Designated Potez 568, the aircraft adopts a turret dorsal slightly shifted to the left and intended for the instructor. The ventral console has disappeared and the engine is identical to that of the Potez 567 (Potez 9E 240 hp.) The Potez 568 will be produced 26 copies

The Germans, after their offensive of May 10, 1940, will seize 4 Potez 567 and 11 Potez 568 abandoned on the airfields. They will be used under German colors as connexion aircrafts


Potez 56E
Version derived from the civil Potez 561 intended for training, transport, and capable of landing on the aircraft carrier Béarn. He has a ventral landing gear

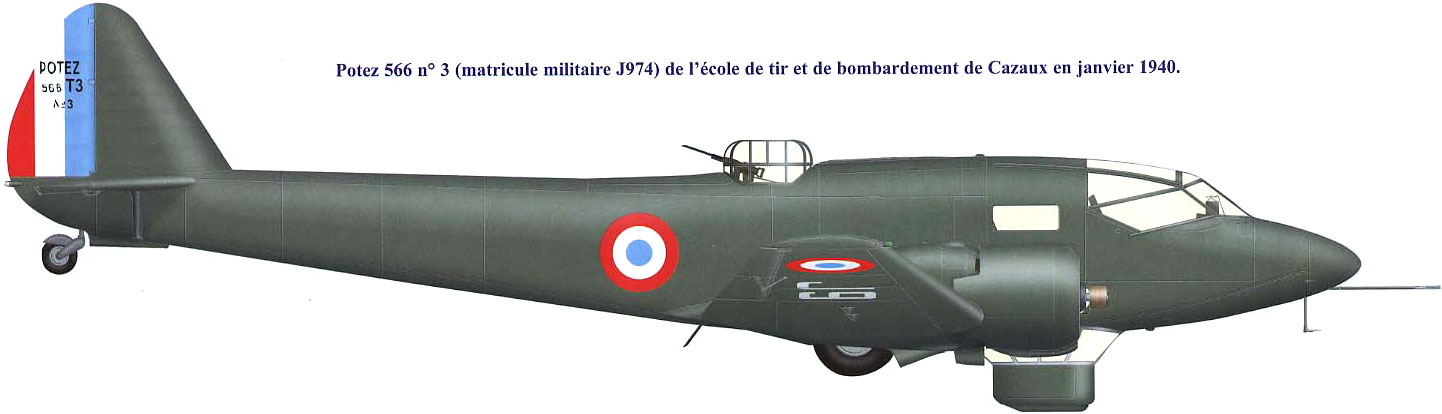

Potez 566
Military version derived from the Potez 560 civil. Classified "T3" (Triplace training, recognition, and liaision), it has a back turret receiving a machine gun of 7.5mm in rear defense and a ventral turret intended to receive the observer. It receives the same engine as the Potez 560: 2 radial engines Potez 9Ab with a unit power of 185 Hp
Potez 567
Version ordered by Aéronavale for training and target towing. motorized by two Potez 9E of 240 Hp, it is deprived of turret dorsal or ventral gondola.
Potez 568
Version very close to the Potez 567. It has a dorsal cupola slightly shifted to the left at the front of the fuselage to receive the instructor



1 ) _ Editions LELA PRESSE ; Avions No156 - 157 et 163
- Le Potez 56 (156 et 157) / Les Potez de la Marine (163)


Photos Album

Drawing 3 views
